khoom parameter
High Voltage Lithium Roj teeb LiFePO4 100Ah 72kWh rau Kev Lag Luam UPS EPS Fais Fab Solutions
MECC High Voltage Battery 100AH, qhov tseem ceeb ntawm kev nyab xeeb thiab kev ntseeg siab hauv lub ntiaj teb ntawm lub zog cia. Qhov kev txiav no -ntug lithium hlau phosphate roj teeb yog tsim tshwj xeeb los ua kom tau raws li qhov xav tau ntawm UPS, kev cia hauv tsev, thiab kev lag luam nrog rau kev lag luam kev lag luam. Txawm hais tias koj tab tom nrhiav kom ruaj ntseg tsis muaj kev cuam tshuam fais fab, txhim kho kev siv hluav taws xob hauv tsev, lossis txhim kho lub zog muaj peev xwm, lub roj teeb lub zog khaws cia no muab cov kev daws teeb meem uas koj xav tau nrog ntau yam tsis sib xws thiab kev ntseeg tau.
Paub meej cov khoom nta:
1. High -Kev Ua Haujlwm LiFePO₄ Roj Teeb Technology
Muab lub neej ntev, txhim khu kev ruaj ntseg, thiab muaj zog ceev ceev
Tuav 90% Qhov tob ntawm Kev Tso Tawm (DoD) rau kev siv lub zog siab tshaj plaws
2. Tshem tawm thiab them nyiaj tswj
Txhim khu kev tswj mechanisms tso cai rau kev tswj kom zoo ntawm ob qho tib si them thiab tawm cov txheej txheem, optimizing kev ua tau zoo thiab txuas ntxiv roj teeb lub neej.
3. Txuj kev tsim qauv qauv
Lub kaw lus tsim qauv txhawb kev yooj yim ntawm kev teeb tsa thiab kev ua kom muaj zog, tso cai rau kev sib koom ua ke ncaj qha rau hauv ntau yam kev siv zog cia. Txog li 14 lub roj teeb racks tuaj yeem tswj tau ua ke.
4. Muaj kev nyab xeeb, ntseeg tau, thiab lub neej ntev
Ua kom muaj kev nyab xeeb ntawm nws lub hauv ntej, peb lub roj teeb system muaj kev ntseeg siab thiab siv tau ntev, ua kom muaj kev thaj yeeb nyab xeeb rau txhua tus neeg siv.
5. Muaj peev xwm hloov tau
Lub kaw lus tsim txhawb nqa lub peev xwm nthuav dav, ua kom muaj kev hloov kho kom tau raws li qhov xav tau ntawm lub zog tshwj xeeb, muab cov kev daws teeb meem rau txhua tus neeg siv.
|
Main Parameter |
|||||||
|
Cell Chemistry |
LiFePO4 |
||||||
|
Module Zog (kWh) |
5.12 |
||||||
|
Module nominal voltage (V) |
51.2 |
||||||
|
Module Peev Xwm (Ah) |
100 |
||||||
|
Roj teeb Module Qty hauv series. (yeem) |
4 (Min) |
8 (Standard US Cluster) |
12 (Standard EU Cluster) |
||||
|
Qhov System Nominal Voltage (V) |
204.8 |
409.6 |
614.4 |
||||
|
Kev khiav hauj lwm voltage (V) |
180~233.6 |
332.8~467.2 |
499.2~700 |
||||
|
System zog (kWh) |
20.48 |
40.96 |
61.44 |
||||
|
System Usable Zog (kWh) |
18.432 |
36.86 |
55.29 |
||||
|
Charge / Tso tawm Tam sim no (A) |
Pom zoo |
50 |
|||||
|
Nominal |
100 |
||||||
|
Peak tso tawm |
125 |
||||||
|
Ua haujlwm kub (degree) |
Tus Nqi: 0 ~ 55 / Tawm Tawm: -20 ~ 55 |
||||||
|
Qhov taw qhia xwm txheej |
Yellow: Roj teeb High Voltage Fais Fab Rau Liab: Roj teeb System Alarm |
||||||
|
Chaw nres nkoj sib txuas lus |
CAN 2.0 / RS485 |
||||||
|
Cov av noo |
5 ~ 85% RH |
||||||
|
Qhov siab |
Tsawg dua los yog sib npaug li 2000m |
||||||
|
IP Rating ntawm Enclosure |
IP20 |
||||||
|
Qhov Loj (W / D / H, mm) |
589*590*1640 |
589*590*2240 |
|||||
|
Qhov hnyav (kg) |
258 |
434 |
628 |
||||
|
Qhov chaw teeb tsa |
Rack Mounting |
||||||
|
Cia kub (degree) |
0~ 35 |
||||||
|
Pom zoo qhov tob ntawm kev tso tawm |
90% |
||||||
|
Lub neej voj voog |
25 ± 2 degree, 0.5C / 0.5C, EOL70% Ntau dua lossis sib npaug rau 6000 |
||||||
|
Warranty |
5 xyoo |
||||||
|
Daim ntawv pov thawj |
CE / UN38.3 / MSDS |
||||||

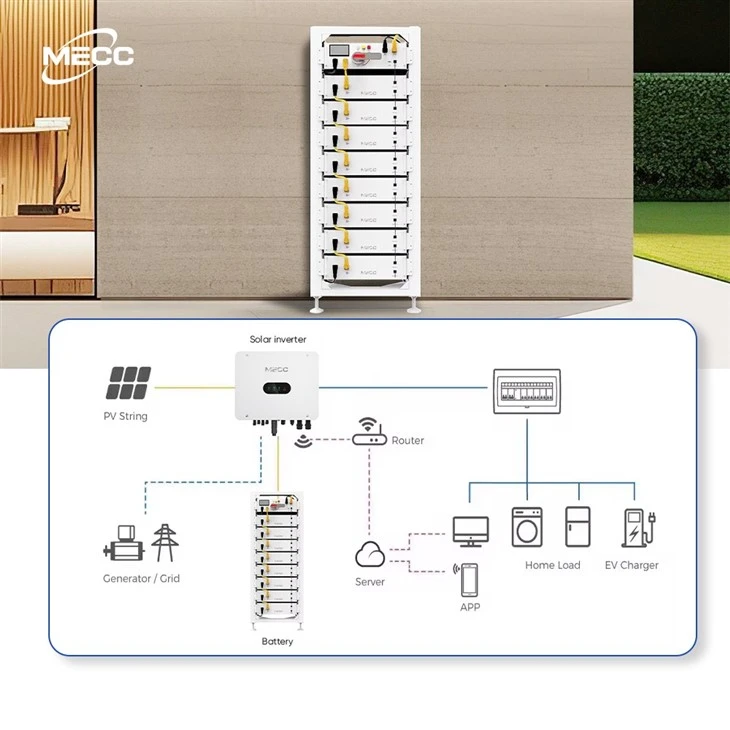

Kev siv scenario kab kos duab
Case
FAQ
Dab tsi yog cov ntsiab lus tseem ceeb ntawm no high-voltage khib-mount lithium roj teeb?
Lub roj teeb no siv 100Ah lithium hlau phosphate (LiFePO₄) hlwb, txhawb nqa ntau qhov hluav taws xob ntau ntawm204.8–716.8V, thiab los nrog lub siab-voltage (HV) lub thawv rau kev nyab xeeb thiab kev tswj hwm. Nws yog tsim los rau high-voltage coj mus muag & muaj zog cia, thaub qab fais fab, thiab daim phiaj-txheej daim ntaub ntawv.
Qhov voltage 204.8-716.8V txhais li cas?
204.8–716.8V yogtag nrho kev khiav hauj lwm voltage qhov raisntawm qhov system. Qhov tseeb nominal voltage nyob ntawm qhov kev teeb tsa series, thaum lub dav dav txhawb kev sib raug zoo nrog ntau yam high-voltage PCS thiab cov tshuab hluav taws xob muaj zog.
Hom cell siv li cas? Puas muaj kev nyab xeeb rau cov tshuab hluav taws xob siab?
Nws siv100Ah LiFePO₄ hlwbnrog siab stability thiab lub neej voj voog ntev. Ua ke nrog HV lub thawv thiab kev tiv thaiv ntau theem, nws muab kev nyab xeeb kev nyab xeeb rau cov tshuab hluav taws xob hluav taws xob siab.
