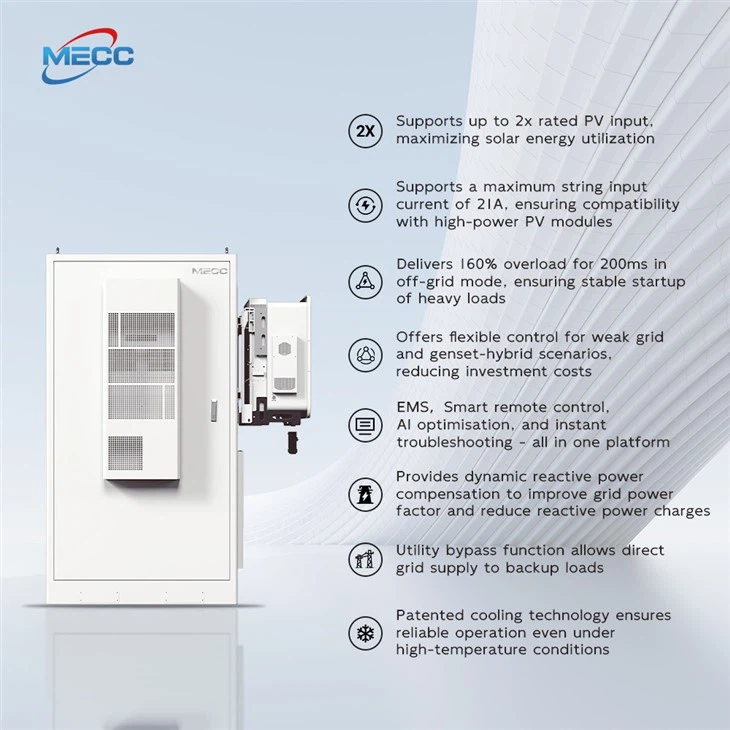

MECC 125KW 241KWH BESS Battery Energy Storage System

Lub MECC 125kw 241kWh Roj Teeb Lub Zog Cia Txee yog qhov siab - muaj peev xwm cia cov tshuaj tsim los rau kev lag luam thiab kev lag luam. Featuring 768V, 314Ah lithium hlau phosphate (LiFePO4) roj teeb, nws ua kom ntev -ntev, nyab xeeb, thiab txuag lub zog.

MECC 125kW / 241kWh BESS ua tiav90% Round-Trip Efficiency (RTE)thiab muab>6,000 cycles ntawm 90% DoD, txo covTus Nqi Them Nqi Cia (LCOS) los ntawm 15%piv rau tsoos 280Ah cell systems.

Thermal Management Technology hauv 125kW BESS

1. High -Kev Ua Haujlwm LiFePO₄ Roj Teeb Technology

Muab lub neej ntev, txhim khu kev ruaj ntseg, thiab muaj zog ceev ceev

Khaws 90% Qhov tob ntawm Kev Tso Tawm (DoD) rau kev siv lub zog siab tshaj plaws

2. Intelligent Energy Management System (EMS)

Seamless on/off -grid switching (<10ms) for uninterrupted power supply

Txhawb ntau hom kev khiav hauj lwm, suav nrog lub ncov shaving, sij hawm- hloov, thiab thaub qab thaum muaj xwm ceev

Tiag -kev saib xyuas lub sijhawm thiab kev tswj chaw taws teeb muaj peev xwm

3. Ntau yam kev siv rau kev lag luam & kev siv lag luam

Zoo tagnrho rau microgrids, factories, EV charging chaw nres tsheb, cov chaw zov me nyuam, thiab tawm -grid daws

Txo cov nqi hluav taws xob los ntawm kev ua kom lub zog siv hluav taws xob zoo dua qub thiab kev sib koom ua ke lub zog tauj dua tshiab

4. Advanced Safety & Protection Nta

AFCl xaiv tau zoo los tiv thaiv kev phom sij los ntawm arc faults, ua kom muaj kev nyab xeeb ntawm lub cev.

Multi- txheej tiv thaiv: Txhawb roj teeb ceeb toom kev noj qab haus huv thiab ntau- txheej tiv thaiv txheej txheem, ua kom muaj kev nyab xeeb thiab ruaj khov thaum ua haujlwm.

5. Kev teeb tsa yooj yim

Tus nqi-Kev teeb tsa tau zoo: Plug thiab ua si ua ntej- ua kom yooj yim rau ntawm - teeb tsa chaw. txuag lub sijhawm thiab kev ua haujlwm.

Diesel Generator Compatibility: Kev sib txuas ncaj qha rau cov tshuab hluav taws xob yam tsis tas yuav tsum muaj lub thawv ATS, muaj kev hloov pauv lub zog hloov pauv.

125kW Txee vs. 20ft Thawv: Thaum lub thawv ntim haum MW- cov phiaj xwm nplai, peb lub txee 125kW / 241kWh nyob60% tsawg hneev tawthiab tso cai raumodular expansion, ua rau nws qhov kev xaiv ROI zoo tshaj plaws rau C&I cov chaw hauv qab 500kW thov.

industrial and commercial

khoom parameter

Qauv	MECC-125/241
DC Tsis muaj
Max.PV Array Power	250 kWp wb
Max.PV input voltage	1000V
Nominal input voltage	600V
MPPT voltage ntau	150-950 V
Max.PV tam sim no	10*42A
Max.Short Circuit Current	10*60A
No.of MPPTs/Strings per MPPT	10/2
AC Tsis muaj
Rated tso zis zog	125 kW tsi
Max.pom zog	125kVA ua
Nominal AC voltage	3W + N + PE, 220V / 380V 230V / 400V
Nominal AC zaus	50Hz / 60 Hz
Rated tso zis tam sim no	180 A
Max. tso zis tam sim no	190 A
Adjustable Power Factor ntau yam	＞ 0.99 (0.8 lagging rau 0.8 ua)
Peak Output Pom Lub Zog (2s)	80 kVA ua
THDi (Rated zog)	<3%
Roj teeb Tsis muaj
Hom roj teeb	LiFePO4
Rated Peev Xwm	314 aw
Rated Roj teeb Voltage	768V
Rated Zog	2 41 kWh
Max.Charging/Discharging Tam sim no	157A
Qhov system Tsis muaj
Qhov tob ntawm kev tso tawm	90%
Ua haujlwm kub	-25℃rau +55 degree
Kev khiav dej num	0% -95% (tsis yog condensation)
Ua haujlwm Altitude	2000m
Kev sib txuas lus	RS485/Wi-Fi/Ethernet/CAN
Kev tswj qhov kub thiab txias	Ntse cua txias
Suab nrov	<70dB
Kev tiv thaiv Ingress	Txee: IP55; Inverter: IP66
*Qhov Loj (W H * D)**	Tsawg dua lossis sib npaug 1626 * 2175 * 1245 mm
Qhov hnyav	Tsawg dua los yog sib npaug li 2500 kg

Kev siv scenario kab kos duab

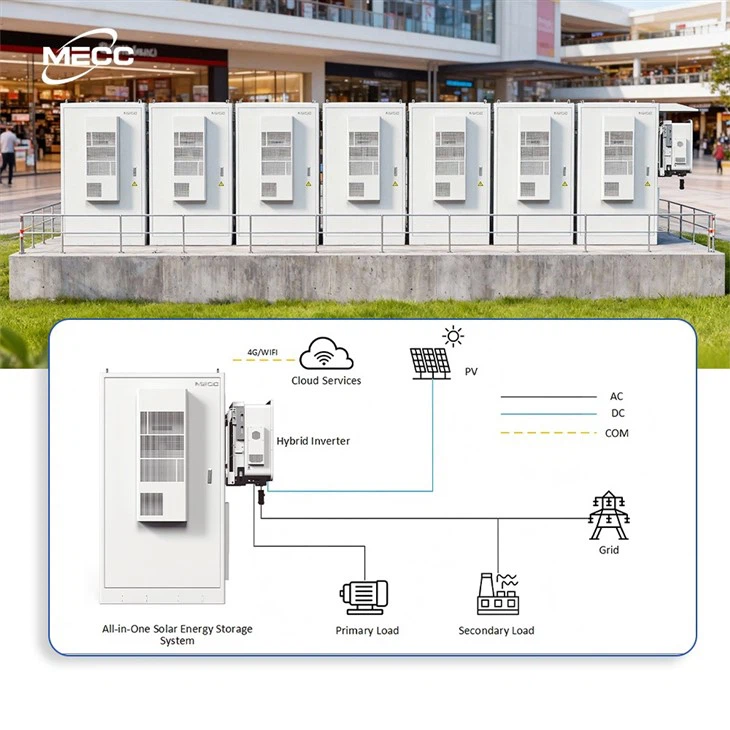

Daim ntawv thov dav dav nrog Grid thiab PV

residential ess

Daim ntawv thov nrog Grid, PV thiab Generator

industrial ess

Ua hauj lwm nrog PV inverters uas twb muaj lawm tsis muaj kab sib chaws

PV station

Daim ntawv thov rau EV Charging Station

EV Car charging

Case

Battery storage system

high voltage battery

all in one cabinet

C&I BESS

FAQ

Vim li cas thiaj siv LiFePO4 (LFP) chemistry rau kev lag luam cia?

LiFePO4 (Lithium Iron Phosphate) yog tus qauv kev lag luam kub rau C&I daim ntawv thov vim nws cov thermal stability zoo dua, kev ruaj ntseg profile, thiab lub neej voj voog ntev (6,000+ cycles), ua haujlwm zoo dua qub Lead -Acid lossis NCM roj teeb.

Lub sijhawm thaub qab npaum li cas tuaj yeem muab 241kWh?

Qhov no nyob ntawm koj qhov hnyav hnyav. Piv txwv li, nws tuaj yeem txhawb nqa 50kW tas li rau kwv yees li 4.5 teev. Peb pom zoo kom kuaj xyuas koj cov cuab yeej tseem ceeb los txiav txim siab lub sijhawm thaub qab yuav tsum tau ua.

Is lub kaw lus scalable yog tias kuv lub zog xav tau kev loj hlob?

kiag li. Peb lub txee 125kW / 241kWh txhawb nqa kev teeb tsa sib npaug rau txog 8 units, ua kom koj lub peev xwm nce mus txog 1000kW / 1.9MWh kom loj hlob nrog koj cov kev lag luam.

Lub sijhawm hloov pauv thaum lub zog hluav taws xob yog dab tsi?

Lub kaw lus nta ib qho kev sib koom ua ke STS (Static Transfer Switch) uas ua kom muaj kev hloov pauv mus rau hom thaub qab tsawg dua 10ms. Qhov no tiv thaiv downtime rau cov khoom rhiab zoo li servers lossis precision manufacturing kab.
