Khoom Description

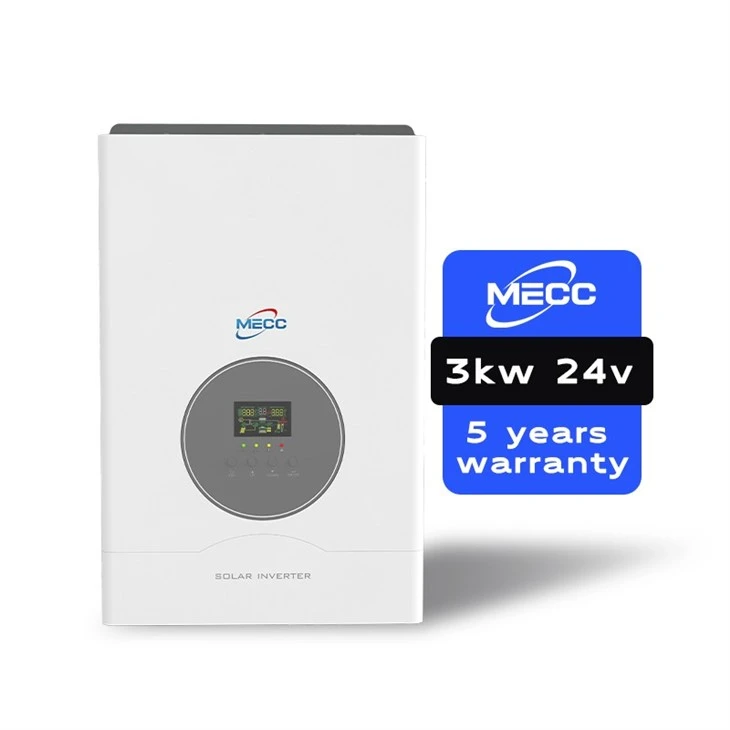

Tawm Grid Inverter
Cov off-grid inverters no yog tsim los ua haujlwm ntawm nws tus kheej ntawm daim phiaj siv hluav taws xob, ua rau lawv zoo tagnrho rau cov chaw nyob deb lossis qhov chaw uas txuas rau kab sib chaws tsis ua tau. Off-grid inverters feem ntau suav nrog cov yam ntxwv xws li kev tiv thaiv kev tiv thaiv hluav taws xob, kev tswj hluav taws xob, thiab qee zaum txawm tias lub roj teeb them lub peev xwm los ua kom ntseeg tau thiab ua haujlwm tau zoo ntawm cov kab hluav taws xob tawm.
Cov khoom parameter
|
ModeI |
GD3024ML |
GD3024JMH |
GD5548JMH |
GD11048MHB |
|
PV Input |
||||
|
PV maxinput zog |
1500W |
3500W |
5500W |
5500W+5500W |
|
MPPT voltage ntau |
30 ~ 115VDC |
120 ~ 430VDC |
120 ~ 430VDC |
120 ~ 450VDC |
|
Txoj kev them nyiaj PV |
MPPT * 1 |
MPPT * 1 |
MPPT * 1 |
MPPT * 2 |
|
Max PV input voltage |
145vdc wb |
450vdc ua |
450vdc ua |
450vdc ua |
|
Max PV them tam sim no |
60A |
100A |
100A |
80A+80A |
|
Roj teeb |
||||
|
Rated voltage |
24 vdc |
24 vdc |
48vd wb |
48vd wb |
|
Tsis tu ncua voltage them voltage (Optional) |
28.2vd wb |
28.2vd wb |
56.4v wb |
56.4v wb |
|
Floating charge voltage (Yeem) |
27 vdc |
27 vdc |
54vd wb |
54vd wb |
|
AC Input |
||||
|
Theem |
L+N+PE |
|||
|
Nominal voltage |
208/220/230/240VAC |
|||
|
Voltage Ntau |
154-264VAC ± 3V (Normal Mode) 185-264VAC ± 3V (UPS Mode) |
|||
|
Ntau zaus |
50Hz / 60Hz (Txhim kho) |
|||
|
AC tso zis |
||||
|
Rated zog |
3000W |
3000W |
5500W |
11000W |
|
Max zog |
6000 VA |
6000 VA |
10000 VA |
20000 VA |
|
Cov zis voltage (AC) |
208/220/230/240VAC ± 5% |
|||
|
Max AC them tam sim no |
60A |
60A |
100A |
80A+80A |
|
Tso zis zaus |
5 0 / 60Hz ± 0.1% |
|||
|
Waveform |
Ntshiab sine yoj |
|||
|
Peak efficiency ( roj teeb hom) |
>94% |
>94% |
>94% |
>94% |
|
Zaub & kev sib txuas lus |
||||
|
LCD zaub |
Kev khiav hauj lwm hom / load / input / output, thiab lwm yam. |
|||
|
Kev khiav hauj lwm ib puag ncig kub |
0 ~ 40 degree |
|||
|
Kev khiav hauj lwm ib puag ncig humidity |
20% ~ 95% (tsis condensing) |
|||
|
Cia kub |
-15 ~ 60 degree |
|||
|
Qhov siab |
Qhov siab yuav tsum tsis pub tshaj 1000m, derating saum 1000m, mus txog 4000m, xa mus rau lEC62040 |
|||
|
Suab nrov |
Tsawg dua lossis sib npaug li 50db |
|||
|
Qhov Loj L * W * H (mm) |
495*312*125 |
|||
|
Qhov hnyav (KG) |
9.5 |
9.5 |
12.5 |
21.5 |
Peb cov khoom kev cai yog tsim los ua eco-phooj ywg, nrog rau kev xaiv ruaj khov.
Cov neeg siv khoom tuaj yeem qhia qhov ntev kev cai kom haum rau qhov chaw seem.
Peb muab kev cai xim txuam cov kev pab cuam los xyuas kom meej cov khoom ua raws li cov décor uas twb muaj lawm.
Peb cov khoom tuaj yeem raug kho nrog cov ntawv sib txawv thiab cov qauv.
