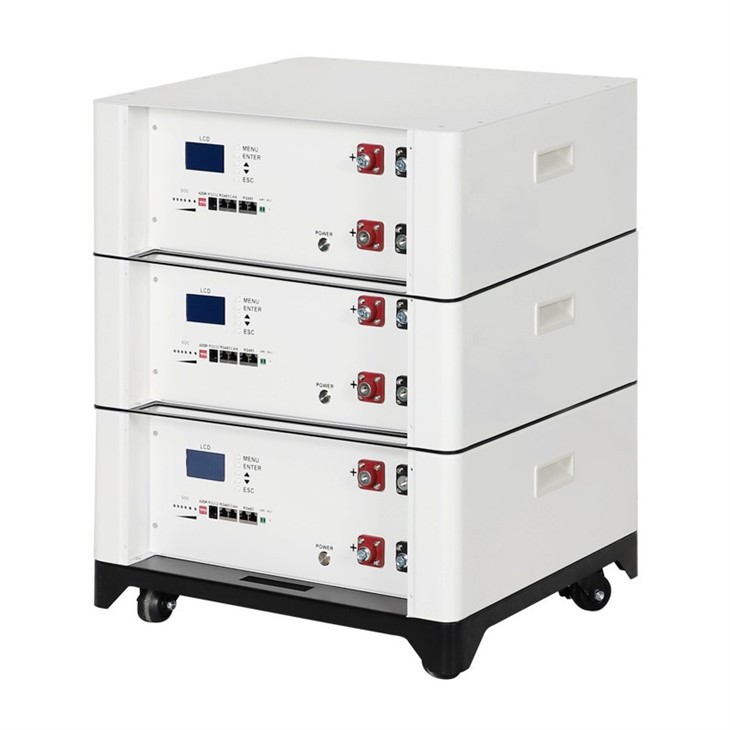

48v 5KWH 10KWH Bms LiFePO4 Stacked Battery

5-30KWH Cov roj teeb lithium

Fais fab & Peev xwm Performance: Ua haujlwm ntawm nominal 48V, nrog kev nyab xeeb ntawm 45V (txiav tawm) mus rau 57.6V (them txiav tawm), ua kom lub zog ruaj khov rau cov khoom siv xws li cov khoom siv hauv tsev, cov cuab yeej siv me me, thiab hnub ci inverters. Tus qauv 5kWh tuav 1-2kW loads rau 3-5 teev (piv txwv li, 1.5kW cua txias rau 3+ teev), thaum 10kWh variant powers 2-3kW systems rau 5-10 teev (tsim rau kev lag luam me thaum lub sijhawm luv luv). Ob qho tib si txhawb kev tso tawm tsis tu ncua ntawm 25A (5kWh) thiab 50A (10kWh), nrog qhov siab tshaj plaws nce mus txog 100A, ua rau lawv tsim nyog rau qee lub sijhawm siab -xav tau cov khoom siv xws li cov cuab yeej hluav taws xob lossis mini-fridges.

Kev nyab xeeb & Ntev: Kev sib xyaw BMS muab ntau- txheej tiv thaiv, suav nrog kev tiv thaiv overcharge (txiav tawm ntawm 57.6V), tshaj - tawm kev tiv thaiv (txiav tawm hauv qab 45V), thiab tiv thaiv overcurrent (50A txuas ntxiv rau 5kWh, 100A rau 10kWh) thiab luv Circuit Court. Nws tswj qhov kub ntawm -20℃txog 60 degree, nrog tsis siv neeg kaw ntawm 65℃los tiv thaiv overheating. Kev sib npaug ntawm tes ua kom ntseeg tau tias tus nqi sib npaug thoob plaws 16 series- txuas lithium hlwb (3.2V txhua), tiv thaiv kev laus tsis sib xws thiab ua kom muaj peev xwm tuav tau. Qhov no, ua ke nrog lithium chemistry, xa 5,{18}} lub voj voog sib sib zog nqus ntawm 80% qhov tob ntawm qhov tso tawm-8-10x ntau dua li cov hmoov lead-acid-nrog rau 12-15 xyoo lifespan thiab xoom tu (tsis muaj dej los yog kua qaub check).

Tsim & Scalability: Nyob rau hauv qhov hluav taws kub-retardant, IP65-rated vaj tse, lub roj teeb tiv thaiv plua plav, nag, thiab lub teeb vibration, haum rau sab hauv tsev, chaw nres tsheb, lossis npog sab nraum zoov. Nws qhov loj me (piv txwv li, 5kWh module: 450 × 300 × 600mm, ~ 40kg) txuag 60% qhov chaw piv rau cov hlau lead-acid sib npaug, haum yooj yim hauv qhov chaw nruj. Lub modular stacking tsim tso cai rau ntsaws-thiab- ua si sib npaug ntawm kev nthuav dav ntawm kev nrawm- txuas cov davhlau ya nyob twg, cia cov neeg siv ntsuas qhov peev xwm mus txog 50kWh los ntawm kev ntxiv ntau chav nyob- zoo tagnrho rau kev loj hlob hauv tsev lossis kev lag luam.

Efficiency & Compatibility: Nrog 94% puag ncig- mus ncig ua si lub zog ua haujlwm, nws txo qis zog poob, ua haujlwm zoo dua -acid (80% kev ua haujlwm zoo) thiab txo qis kev cia siab ntawm daim phiaj lossis lub tshuab hluav taws xob. Nws koom ua ke seamlessly nrog MPPT hnub ci nqi controllers thiab inverters (Victron, Renogy) ntawm tus qauv RS485 kev sib txuas lus, ua kom muaj tseeb - lub sij hawm saib xyuas ntawm SOC, voltage, thiab kub los ntawm kev tsim- hauv LCD lossis smartphone app. Qhov no ua kom muaj kev sib koom ua ke yooj yim rau hauv kev teeb tsa hnub ci lossis cov txheej txheem thaub qab, ua rau nws yog tus neeg siv - kev xaiv tus phooj ywg rau ob qho tib si hauv tsev thiab kev lag luam me.
