■ Conversion efficiency yog siab.
■ Multibus technology.
■ Aluminium alloy ncej
■ Zoo heev uas tsis tshua muaj hluav taws xob tsim kev ua tau zoo.
■ Cua muaj zog thiab daus loads.
■ Muaj zog tiv thaiv kub kub.
■ Strong adaptability rau txawv hnyav ib puag ncig.
Khoom Description

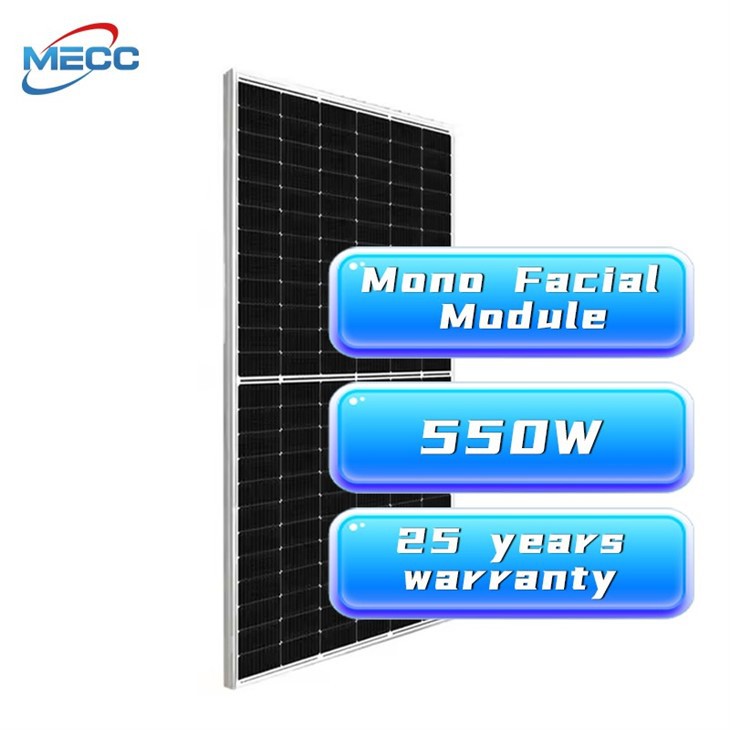

Super Power Solar Vaj Huam Sib Luag Mono Ib nrab-txiav
Cov khoom parameter
|
|
|||||||||
|
Module |
530M-144~550M-144 |
||||||||
|
Lub zog siab tshaj plaws Pmax (W) |
530 |
535 |
540 |
545 |
550 |
||||
|
Qhov hluav taws xob siab tshaj plaws (Vmp / V) |
41.31 |
41.47 |
41.64 |
41.8 |
41.96 |
||||
|
Maximum fais fab tam sim no (Imp/A) |
12.83 |
12.9 |
12.97 |
13.04 |
13.11 |
||||
|
Qhib Circuit Court voltage (Voc/V) |
49.3 |
49.45 |
49.6 |
49.75 |
49.9 |
||||
|
Luv Circuit Court tam sim no (Isc/A) |
13.72 |
13.79 |
13.86 |
13.93 |
14 |
||||
|
Module Efficiency (%) |
20.5 |
20.7 |
20.9 |
21.1 |
21.3 |
||||
|
Lub zog kam rau ua (W) |
0~+5W |
||||||||
|
STC |
Irradiance 1000w / m², Cell Kub 25C, Cua Mass 1.5 |
||||||||
|
Lus ceeb toom |
Cov ntaub ntawv hauv phau ntawv qhia no tsis xa mus rau ib qho module. Nws tsis yog ib feem ntawm qhov kev thov. Lawv tsuas yog siv rau kev sib piv ntawm ntau hom module. |
||||||||
|
|
|||||||||
Product Overview
| Khoom Specification | |
| Module Loj | 2278 * 11134 * 35 hli |
| Qhov hnyav | 30kg ua |
| Hom Cell | Ib nrab Hlais N Hom Mono |
| Junction Box | IP68 |
| Kab | 50cm 4mm2 cable lossis customized |
| Txuas | PV Connector |
Kev tshawb nrhiav thiab kev tsim kho yog cov khoom tseem ceeb ntawm lub hnub ci fais fab fais fab. Kev tsim kho tshiab tsis tu ncua pab txhim kho thev naus laus zis, txhim kho kev ua haujlwm zoo, thiab txo cov nqi, ua kom lub neej yav tom ntej zoo rau lub hnub ci zog.
